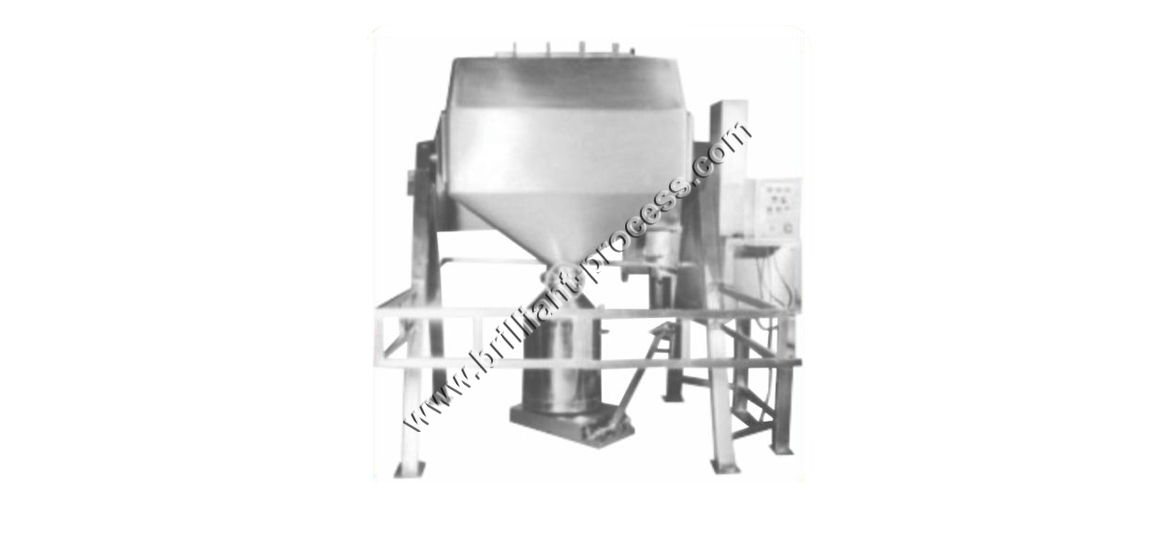

Octagonal Blender

Product Code : 27


Capacity : 1 Ltr. to 10000 Ltrs. (Higher capacity upto 20000 Ltrs. on demand)

Octagonal Blender, due to its octagonal shape is designed to process larger volume of material. It occupies less space compared to other similar blenders like 'V' and Double Cone. Power consumption is also less. The blending takes place at low speed during operation. It is well balanced even in higher capacities.

It is very useful for pharmaceutical industries wherein gentle blending of dry granules of powder is to be done. It is a slow speed blender and has removable type baffles mounted on a rectangular shell. The important feature of the machine is easy to wash in place.

Octagonal blender is supplied with a bin charging system or can be designed for vacuum charging. Dust free charging system is also incorporated, which is a completely closed system for charging and discharging of powders or granules. The power consumption is comparatively lower than other similar type of blenders.

The material to be mixed is charged in machine either manually from top or bin charging system or vacuum charging system and then the port is locked positively. Then blender is started to preset blending time. At the end of process, machine is stopped and the product is transferred to process containers by opening the butterfly valve

Application :

Dry powder mixing for tablets and capsules formulations

Dry granules sub lots mixing to increase the batch size at bulk lubrication stage of tablet granules.

Salient Features :

Material handling in Octagonal Blender is through Bin charging or a Vacuum charging system.

Bin charging system ensures Dust free closed system for Charging and Discharging of Product.

Power consumption is relatively lower than other tumble blenders.

Slow speed Blender with gentle blending of Dry granules.

Rectangular opening Lid with Removable Baffle mounted inside.

Optional in built in Vacuum design.

No external PTS (Powder Transfer System) required.

Zero Jerk Load as machine is both dynamic and statically balanced.

Totally enclosed.

The baffles are eliminated with blending profile analysis available.

Complete Design engineering along with the Extrapolation data available.

Maintenance free design.

Detailed torque calculation for the Bin; loading Model available.

Pneumatically actuated valves for dust free transfers.

Bins with Level sensory for automatic cut off.

Mechanical Seals on shafts for Pneumatic connections.

cGMP design for ease of cleaning.

CE Certified.

Quick Enquiry Form:

Model OB - 10 OB - 30 OB - 50 OB - 100 OB - 200 OB - 300 OB - 400 OB - 600 OB - 750 OB - 900 OB - 1250 OB - 1500
Gross Volume in Ltrs 10 30 50 100 200 300 400 600 750 900 1250 1500
Working Volume in Ltrs 6 20 35 70 135 200 265 400 500 600 800 1000
Motor (HP) 0.5 0.5 1.0 1.0 1.0 1.5 1.5 2.0 2.0 3.0 5.0 5.0
Gear Box 1 ¾ ” 1 ¾ ” 2 ¼ ” 2 ¼ ” 2 ¼ ” 3” 3” 3” 3 ½ ” 4” 4” 5”
