Product Code : 26
Brand Name : BRILLIANT PROCESS

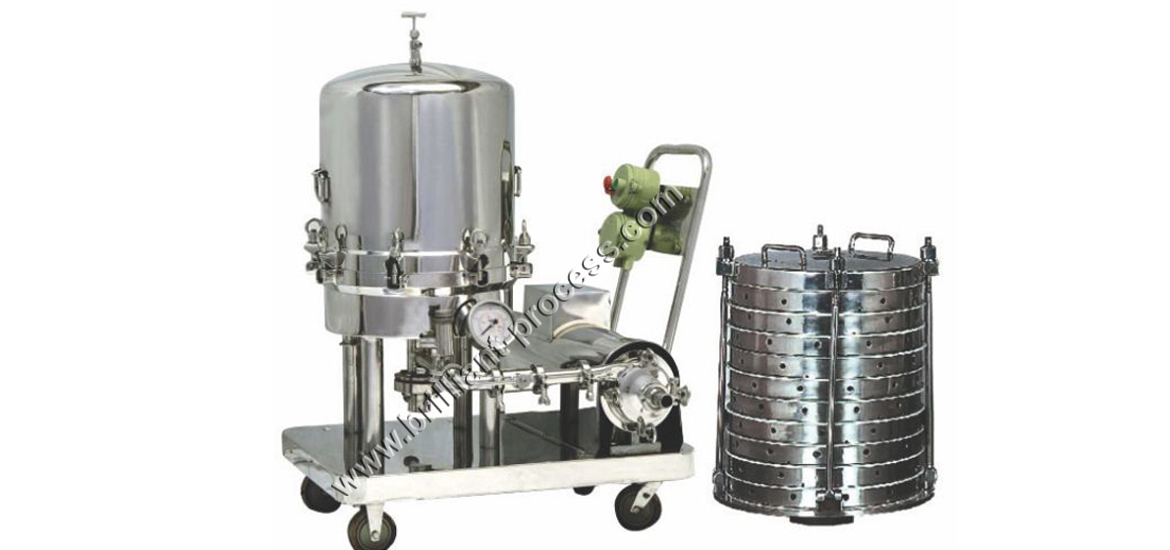

REVERSE FLOW ZERO HOLD UP TYPE : Here the direction of flow of liquid is exactly opposite to the flow in standard filter i.e. the impure liquid to be filtered enters the filter from the bottom into the center channel & goes to the top of each plate. The clear filtrate flows out from openings on side of plates to the shell & then to the outlet. This flow ensure almost 100% filtration of the liquid which is not so with the standard flow type.
Salient Features :
Complete filtration of the batch without any hold up due to reverse flow of liquid hence large saving in time & cost.
Back wash facility can be provided for continuous operations.
No scavenger arrangement required.
The cake, filter aid & solids remain totally enclosed allowing filtration of toxic, hazardous & explosive liquids.
The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake.
Quick Enquiry Form:
| Model | Dia. of Plates | No. of Plates | Filtering Area m² | Cake holding Cap. (Ltrs) | Flow Rate / Hrs | Size of Pump | Motor HP |
| BPMZH - 8 | 8” | 6 Plates 8 Plates |
0.217 0.279 |
4.9 6.3 |
600 800 |
½” ½” |
1HP 1HP |
| BPMZH - 14 | 14” | 8 Plates 10 Plates 12Plates |
0.819 1.001 1.183 |
24.75 30.25 37.75 |
1500 1700 1900 |
1” 1” 1” |
2HP 2HP 2HP |
| BPMZH - 18 | 18” | 10 Plates 12 Plates 15Plates 24Plates |
1.65 1.95 2.4 3.75 |
55 65 80 125 |
4000 4600 5500 8200 |
1½” 1½” 1½” 1½” |
3HP 3HP 3HP 3HP |
| BPMZH - 24 | 24” | 15 Plates 18 Plates 24 Plates |
4.192 5.035 6.625 |
144 171 225 |
7000 8500 12500 |
2” 2” 2” |
5HP 5HP 5HP |
| BPMZH - 33 | 33” | 7 Plates | - | - | - | 2” | 5HP |
